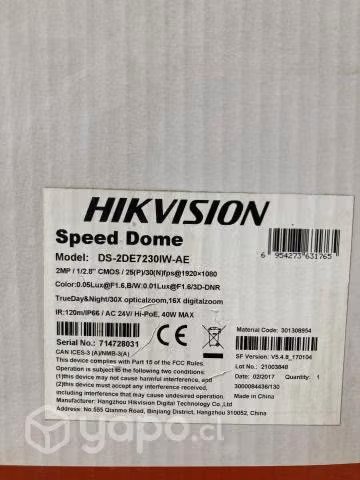

Camera Module "DS-2DE7230IW-AE (B)FC
2MP 30× Network IR Speed Dome"
Image Sensor 1/1.9" progressive scan CMOS
Min. Illumination "Color: 0.005Lux @(F1.5, AGC ON) B/W: 0.0005Lux @(F1.5, AGC ON)
0 Lux with IR"
White Balance Auto/Manual/ATW (Auto Tracking White Balance)/Indoor/Outdoor/Fluorescent lamp/Sodium lamp
AGC Auto/Manual
Shutter Time 1/1 s to 1/30,000 s
Day & Night IR Cut Filter
Digital Zoom 16×
Privacy Mask 8 programmable privacy masks
Focus Mode Auto/Semi-automatic/Manual
3D DNR Support
BLC Support
WDR 120DB
HLC Support
EIS Support
Defog Support
Lens
Focal Length 5.9 mm to 177 mm, 30× Optical
Zoom Speed Approx. 4.9 s (optical lens, wide-tele)
Field of View Horizontal field of view: 59.8° to 2.3° (wide-tele) Vertical field of view: 35.9° to 1.3° (wide-tele) Diagonal field of view: 66.8° to 2.7° (wide-tele)
Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.5 to F3.4
IR
IR Distance Up to 150 m
IR Intensity Automatically adjusted.
PTZ
Movement Range (Pan) 360° endless
Pan Speed Configurable, from 0.1°/s to 160°/s, Preset Speed: 240°/s
Movement Range (Tilt) From -15° to 90°
Tilt Speed Configurable, from 0.1°/s to 120°/s, Preset Speed: 200°/s
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
Scheduled Task Auto Scan/Frame Scan/Random Scan/Patrol/Pattern/Preset/Panorama Scan/Tilt Scan/Dome Reboot/Dome Adjust/Aux Output
Features
Event Smart "Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting
Detection"
ROI encoding Main stream, sub-stream and third stream respectively support two four areas.
Network
Max. Resolution 1920 × 1080
